DESCRIZIONE
Braiding Machine 4 Head 104 STICH JUMBO
Braiding Machine 4 Head
104 STICH JUMBO
Braiding Machine 4 Head 104 STICH JUMBO
Additional information
| Weight | ... kg |
|---|---|
| Dimensions | ... x ... x ... cm |
Data sheet
Data sheet
Grooved or flat rolled draft.
Automatic device for machine stop in case of thread breakage and spool exhaustion.
Safety device for motor overload.
Modular board electrical equipment with start, stop, impulse and emergency push-button controls.
Machine stop signal lamp.
Three-phase vertical motor for 380 v 50 Hz.
Blind or perforated pins.
Induction tempered runs.
Steel crossings.
Protection in accordance with EEC (machine directive 89/392).
Accessories
Accessories

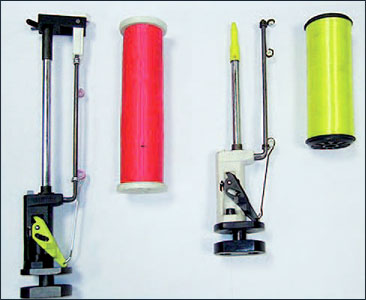

Fusi a richiesta montati H 104 Jumbo con: - 1,2 o 3 porcellane bianche o rosa (Nr.1). - Bobina H 104 Ø55x175 (Nr. 2). - Fuso H o R 104 (Nr. 3). - Bobina H o R Ø 55x130 (Nr. 4). Mounted carriers on request H 104 Jumbo with: - 1,2 or 3 pink or white porcelains (Nr. 1). - Bobbin H 104 Ø 55x175 (Nr. 2). - Carrier H or R 104 (Nr. 3). - Bobbin H or R Ø 55x130 (Nr. 4). |  |
Winder for wooden reels diam. 300x100x100 mm.
Light guide 200, 300, 400, 500 mm.
Mechanical gear clutch.
Unwinder and belt winder.
Additional draft with flat rollers.
Manual or electronic meter counter.
Feeder for the rubber.
Wind light 300, 400, 500, 800 mm.
Speed regulator and electronic pitch.
Soundproofing protection for dBa lowering built with thermal break profiles and with soundproof panels according to EEC regulations with cooling fan and lighting lamp.
Possible configurations
Possible configurations
Fuseaux Klöppel Carrier Shusos | Tétes Köpfe Heads Cabezas | Volume = mm Stichgrösse = mm Gauge = mm Volumen = mm |
